Product name:
Series column submerged hollow fiber membrane modules
Product specification:S-0660、S-0680
Product information:

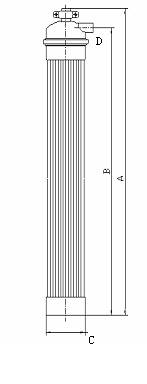

1. Dimension of column submerged membrane modules
2. Specification of series column submerged hollow fiber membrane modules
3. Performance of series column submerged hollow fiber membrane modules
4.Operating parameters of series column submerged hollow fiber membrane modules
 |
|
2. Specification of series column submerged hollow fiber membrane modules
| Type | S-0660 | S-0680 | |
| Dimension (mm) | Φ160×1640 | Φ160×2150 | |
| Membrane material | PVDF, H-PES | ||
| Pore size | MWCO 150000，0.1μm | ||
| Membrane area(m2) | 30 | 40 | |
| Housing material | UPVC | ||
| Potting material | epoxy resin / polyurethane | ||
| Outlet size (mm) | DN32 | DN32 | |
3. Performance of series column submerged hollow fiber membrane modules
| Design filtrate rate(m3/d) | ≥28 | ≥38 |
| Permeate turbidity | <0.1NTU | |
| SDI | ＜3 | |
4.Operating parameters of series column submerged hollow fiber membrane modules
| Run mode | Suction |
| Controlling mode | Constant pressure / constant flow |
| Operating pressure | -0.01~-0.04 (MPa) |
| Maximum backwash pressure | 0.20MPa |
Maximum operating temperature |
50 ℃ |
pH range |
2~10 |
