Product name:Series curtain type submerged hollow fiber MBR modules
Product specification:MBRⅠ, MBRⅡ, MBRⅢ
Product information:
1. Specification of series curtain type submerged modules
2.Performance of series curtain type submerged modulesules
3.Operating parameters of curtain type modulesules

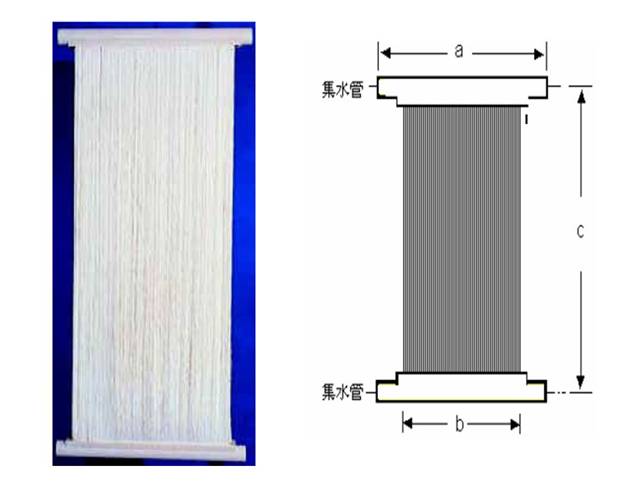

| Type | Dimensions（mm） (a×b×c) |
Membrane material |
Area(m2/module) | Designed flu（L/h.module） |
| MBRⅠ | 530×450×1010 | PVDF | 12.5 | 150～180 |
| MBRⅡ | 530×450×1500 | 15 | 180～220 | |
| MBRⅢ | 530×450×1500 | 20 | 240～300 | |
| Lab | 300×250×450 | 1 |
2.Performance of series curtain type submerged modulesules
| Temperature | 5℃~45℃ | Pore size | 0.1μm |
| pH | 2~10 | Permeate turbidity | ＜0.5 NTU |
| Ratio of blow gas and permeate flow： 20 ：1 | |||
3.Operating parameters of curtain type modulesules
| Run mode | Suction |
| Controlling mode | Constant pressure / constant flow |
| Operating pressure | -0.01~-0.04 (MPa) |
| Maximum backwash pressure | 0.20MPa |
Maximum operating temperature |
50 ℃ |
pH range |
2~10 |
MLSS |
5000～15000 mg／L |
Oil & Grease |
Oil content(n-Hex) ≤50 mg／L; Mineral oil(n-Hex) <5 mg／L |
